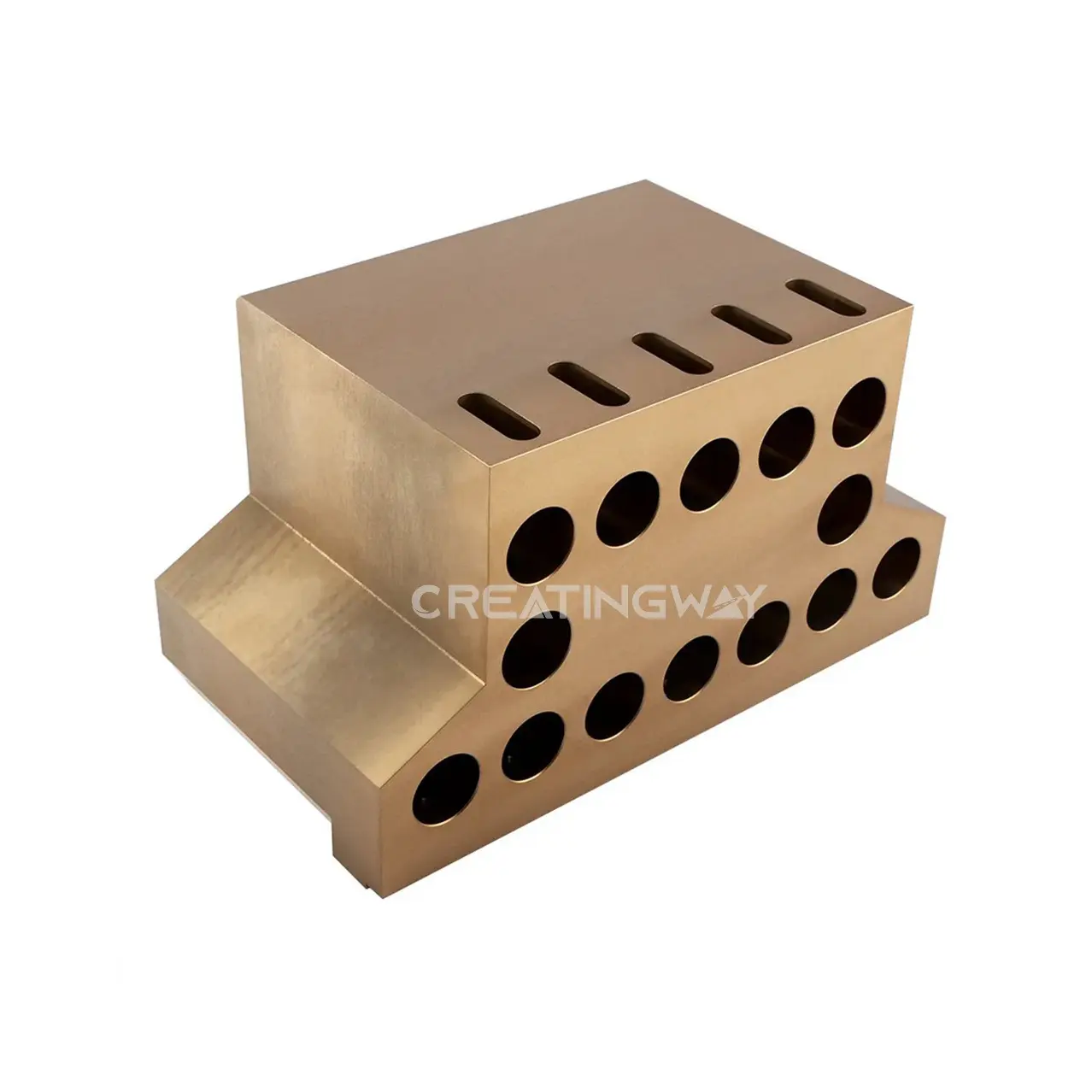

ODM Hydraulic Valve Block Parts CNC Machining Manufacturer Manufacturers, Factory

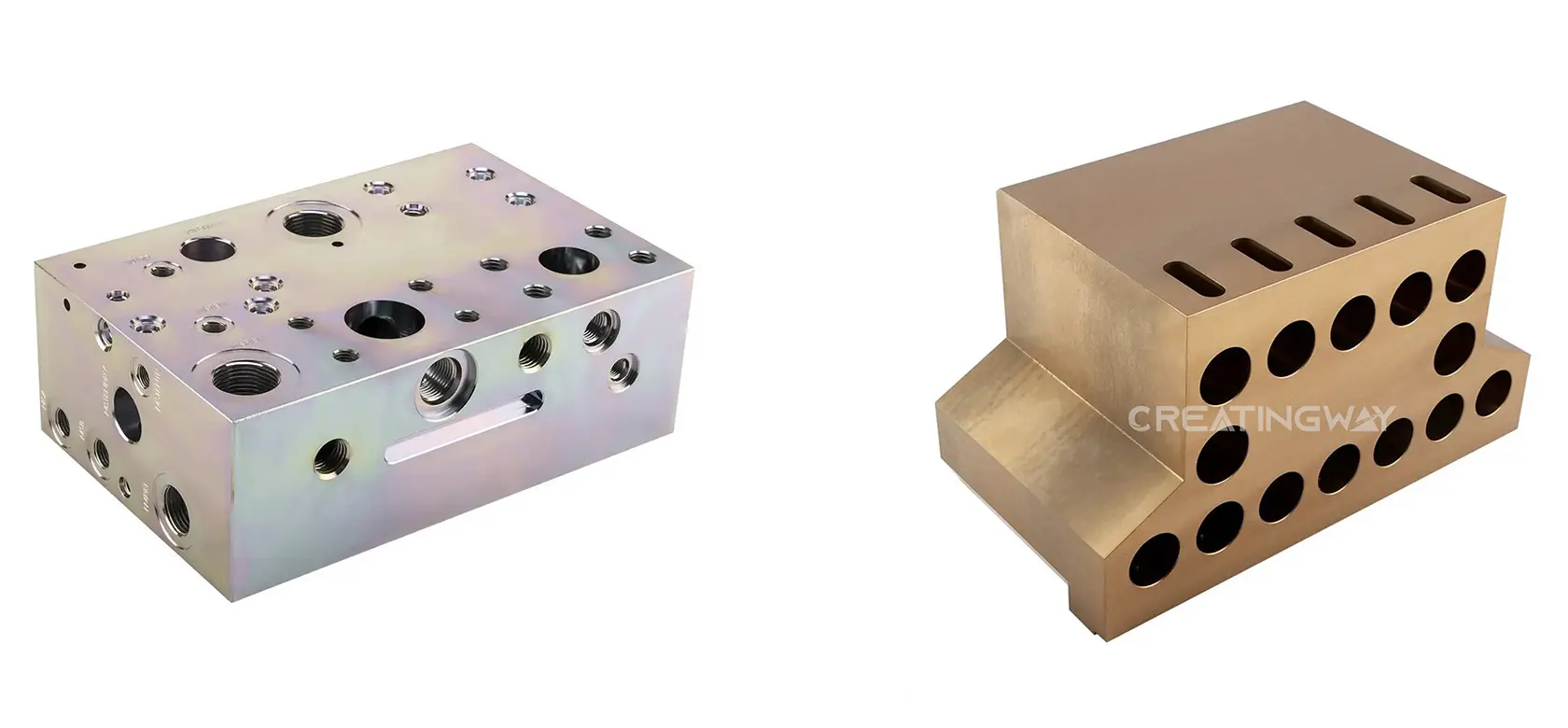

Hydraulic systems are pretty well-known for their ability to pack a punch with powerful force and give spot-on control across a whole bunch of industrial applications. Among the key players in this game is the hydraulic valve block. These valve blocks are absolutely essential for running all sorts of machinery—think construction equipment, agricultural gear, and even stuff in the automotive and aerospace world.
Secondary finishing options including anodizing, power coating and more.
Project Challenges
The main challenge is the highly complex product features. With multiple internal flow holes, we must machine surfaces sequentially, followed by precise drilling and intensive cleaning processes.
Our engineering team utilizes extended cutting tools and advanced CNC milling to ensure all internal threaded holes remain precise and fully assembly-ready after rotating through different machining planes.
Manufacturing Process
We conduct a careful design overview and apply Positive Material Identification (PMI) to test alloy compositions before production.
1 CNC Programming & Simulation
2 Engineering Review and Code Optimization
3 Workpiece Mounting and Setup Adjustment
4 Production Monitoring and Functional Testing
5 Real-time Cutting Program Adjustments
Post-Machining Surface Finishing
To achieve aesthetic and functional excellence, we provide a variety of finishing services:
Anodizing: Clear and silver anodizing for corrosion and wear resistance.
Powder Coating: For a durable and protective surface.
Polishing: Creating a reflective and shiny appearance for engine mounts and visible components.
Hard Anodizing: Specialized for tube fittings and high-wear areas.
Exceeding Expectations
We specialize in rapid prototyping and low-to-high volume production. Whether you require 1 piece or over 100 pieces, our team provides cost-effective solutions with high precision.
Submit your 2D and 3D drawings to start your project. We offer affordable quotes with no minimum volume requirements and guarantee timely delivery to your doorstep.
Frequently Asked Questions
1. What materials are typically used for Hydraulic Valve Blocks?
We primarily use high-strength 7075-T6 aluminum, which offers excellent machinability and durability for hydraulic applications.
2. What is the maximum precision tolerance you can achieve?
Using our advanced grinding and CNC machines, we can achieve tight tolerances down to 0.005mm.
3. Do you handle low volume or prototype orders?
Yes, we support everything from a single prototype (1pc) to low-volume production (100+ pcs) with no minimum order requirements.
4. What surface finishes are available for these parts?
We offer a full range of finishes including clear/hard anodizing, powder coating, silk-screening, and high-quality polishing.
5. What technical information is needed for a quote?
Please provide your project drawings, including both 2D and 3D files, so our engineering team can accurately evaluate the complexity and cost.
6. How do you handle complex internal hole features?
We use 5-axis CNC machining and specialized extended tools to ensure complex internal flow paths and threaded holes are perfectly aligned and clean.
